Hushmat Custom Vehicle Door Sound Deadening and Insulation Kit covers two vehicle car doors.
Reduce that aftermarket engine, exhaust drone, road noise, vibration and the noise that disrupts your ride and reduce the heat that comes from engine, headers, exhaust and catalytic converter with one USA Made material, light weight HushMat Ultra.

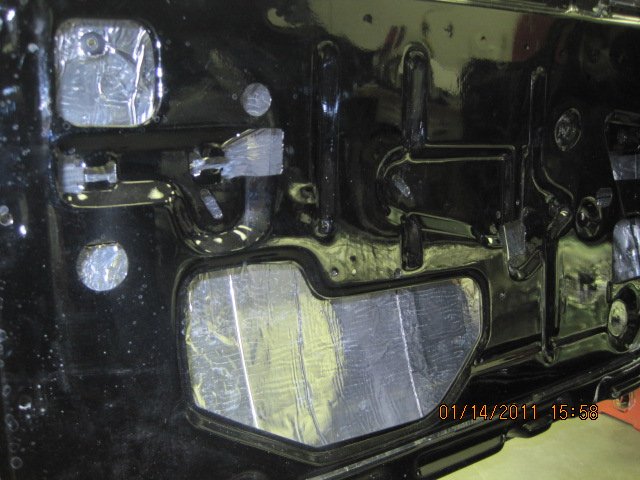

Style, convenience and comfort are the earmarks of your Pick Up. When you slam your Pick Up door it should sound solid. The door slam should not rattle or sound like it is loose. If it does then HushMat is the solution for you. HushMat applied to the outer skin will make your door slam sound solid, every time. It will sound like you purchased a brand new high end Pick Up. It will turn heads but after driving it for a period of time the road noise can be fatiguing. When driving on the highway at approximately 65 miles per hour the interior of your Pick Up is approaching 80 to 90 decibels. Nearly 20 percent of that noise penetrates the interior through the two front doors. 80 decibels is like a vacuum cleaner or garbage disposal running on your passenger seat. HushMat uses a specially designed sound deadening mat to REDUCE the noise level in your Pick Up by up to 15 decibels. When you drive on a highway and then exit, at the end of the exit ramp the first thing you do is turn down your radio or music because it was too loud. It had to be that loud on the highway to overcome all the noise inside your Pick Up. Using car soundproofing called HushMat will reduce this noise floor and allow you to hear more music. HushMat sound deadening and thermal insulation material leads the automotive industry in ease of installation. It is also number 1 Rated in performance. Packaged specifically for your Pick Up doors to provide 100 percent sound and thermal insulation coverage, there are no holes in the material and no puzzle pieces to put together. Simply apply the HushMat Ultra material as shown in the Installation Guide. Nothing beats the heat or noise like HushMat. If you want an extra layer of sound and thermal protection consider adding HushMat Silencer Megabond one quarter inch foam part number 20200 to the back of your front driver and passenger door panels. Please see the Door Installation Guide for more detail.
| Download Name | File Size |
| HushMat Ultra Specification Sheet.pdf | 149.54KB |
| HushMat_Ultra 200-400-800 Hz Graph SAEJ1637.pdf | 23.13KB |
| Door Kit_Sell Sheet_FINAL.pdf | 603.65KB |
| Install DOOR.pdf | 450.93KB |
| Damping Pad MSDS.pdf | 26.43KB |
| Make | Model | Years |
| Chevrolet | C10 Pickup | 1973 - 1974 |
| Chevrolet | C10 | 1975 - 1986 |
| Chevrolet | C20 Pickup | 1973 - 1974 |
| Chevrolet | C20 | 1975 - 1986 |
| Chevrolet | C30 Pickup | 1973 - 1974 |
| Chevrolet | C30 | 1975 - 1986 |
| Chevrolet | K10 Pickup | 1973 - 1974 |
| Chevrolet | K10 | 1975 - 1986 |
| Chevrolet | K20 Pickup | 1973 - 1974 |
| Chevrolet | K20 | 1975 - 1986 |
| Chevrolet | K30 Pickup | 1973 - 1974 |
| Chevrolet | K30 | 1977 - 1986 |
| Chevrolet | R10 | 1987 |
| Chevrolet | R20 | 1987 |
| Chevrolet | R30 | 1987 |
| Chevrolet | V10 | 1987 |
| Chevrolet | V20 | 1987 |
| Chevrolet | V30 | 1987 |
| GMC | C15/C1500 Pickup | 1973 - 1974 |
| GMC | C25/C2500 Pickup | 1973 - 1974 |
| GMC | C35/C3500 Pickup | 1973 - 1974 |
| GMC | K15/K1500 Pickup | 1973 - 1974 |
| GMC | K25/K2500 Pickup | 1973 - 1974 |
| GMC | K35/K3500 Pickup | 1973 - 1974 |
| Cold Flexibility | Can be bent around 25 mm. mandrel at -30 degrees C with no cracking or loss of adhesion |
| Color | Polymer - Black; Backing - Silver |
| Flammability | Tested per FMVSS 302, HushMat Ultra is self-extinguishing and meets all aspects of the standard |
| Hardness | 6.5 - 9.0mm ?ASTM D-5 |
| Part Type | Thermal Acoustic Insulation |
| Peel Strength | Tested in 90 degree peel at a crosshead speed of 300mm per minute on a 25 mm wide test specimen. Average load in Newtons is reported. |
| R-Value | 7 |
| Safety | HushMat Ultra is not considered a hazardous material. Care should be used in handling to avoid cuts from the foil. Gloves are recommended. The Material Safety Data Sheet is available upon request and should be read and understood before using this product. |
| Shelf Life | At least 6 months when stored at 40 degrees C or less |
| Specific Gravity | 1.47 (approx. 0.47 pounds per square foot) |
| Temperature Resistance | HUSHMAT ULTRA will withstand a bake of 1 hour at 240 degrees C with no deformation, sag, or flow when baked in horizontal, vertical or inverted positions. |
| Thickness | 1.5mm |
| Warranty | Seller warrants marketable title to the Product, free and clear of all liens and encumbrances. Seller makes no other express or implied warranties beyond that stated on quoted product, statutory or otherwise. |
